Water Heater Design Ideas 2026 | 6 Clean Installs

Most water heaters look bad because the install treats them as equipment to hide, not a fixture to feature. The 2026 design move — across modern, transitional, and farmhouse interiors — is the opposite: give the unit a clean wall, run the supply lines vertically, and let the form do the talking.

Below are six real install scenarios across tankless, hybrid heat pump, and traditional tank units. For each, we've noted the placement principle that makes it work and the unit type that fits the space.

Why it works: The unit is centered on a wall by itself, with copper supply lines run vertically straight down — no bends, no loops, no tangle. In a clean white utility room, the slim cabinet reads as a fixture, not equipment.

Recommended unit type: Condensing tankless (Navien NPE-A2, Rinnai RX series, or Noritz NRCP). About 11k–199k BTU input, 14"W × 24"H footprint, vents through a single 2" PVC line.

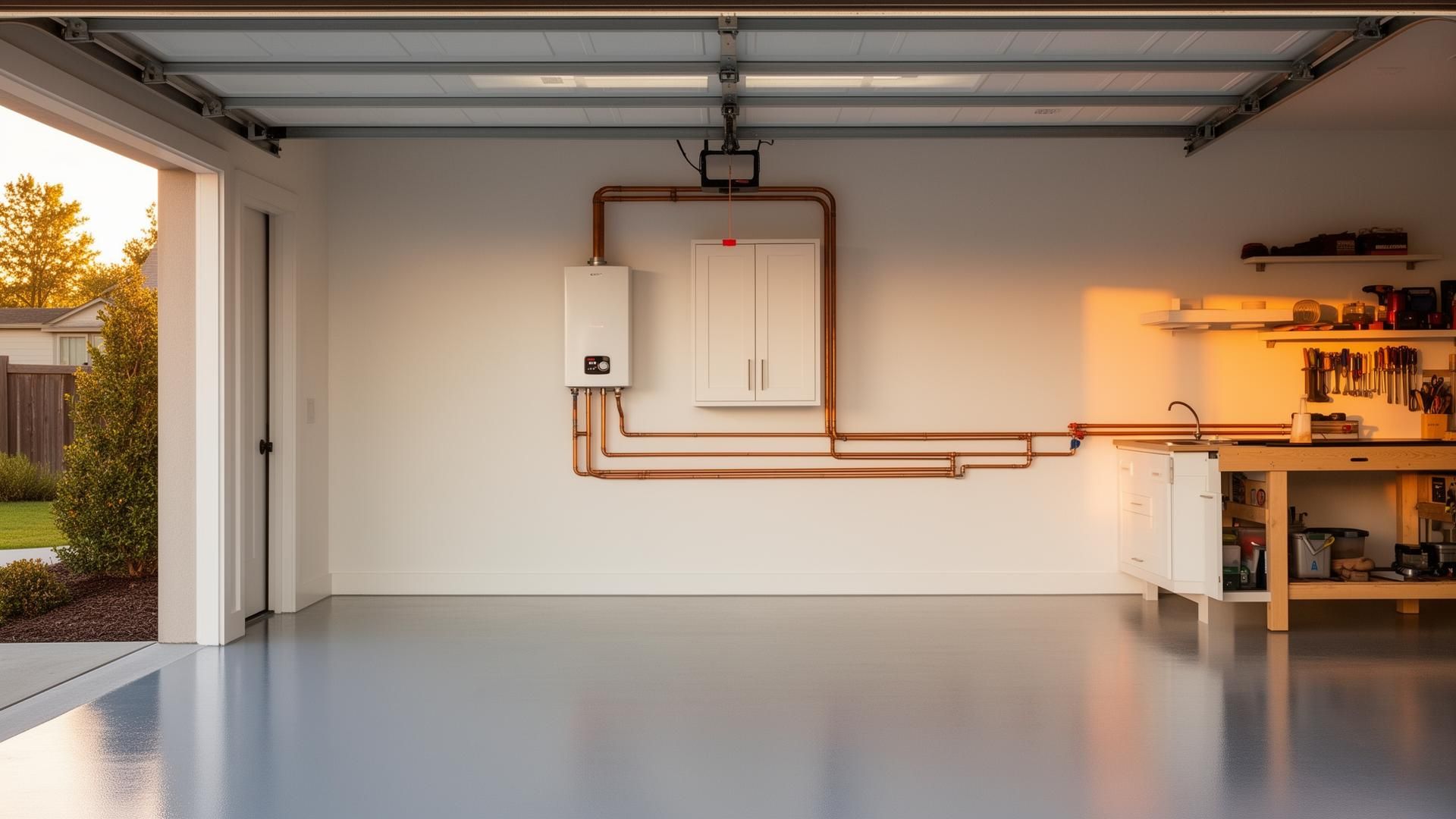

Why it works: Putting the water heater in a finished garage frees up interior square footage and lets you run copper as exposed decoration. The trick is parallel pipe runs at consistent heights — no random elbows, no zigzags. Treat copper like you'd treat conduit in a Restoration Hardware loft.

Recommended unit type: Condensing tankless rated for cold-climate freeze protection. In a Long Island garage, the unit's freeze-protection circuit needs power year-round — confirm your installer wires it to a dedicated, never-switched circuit.

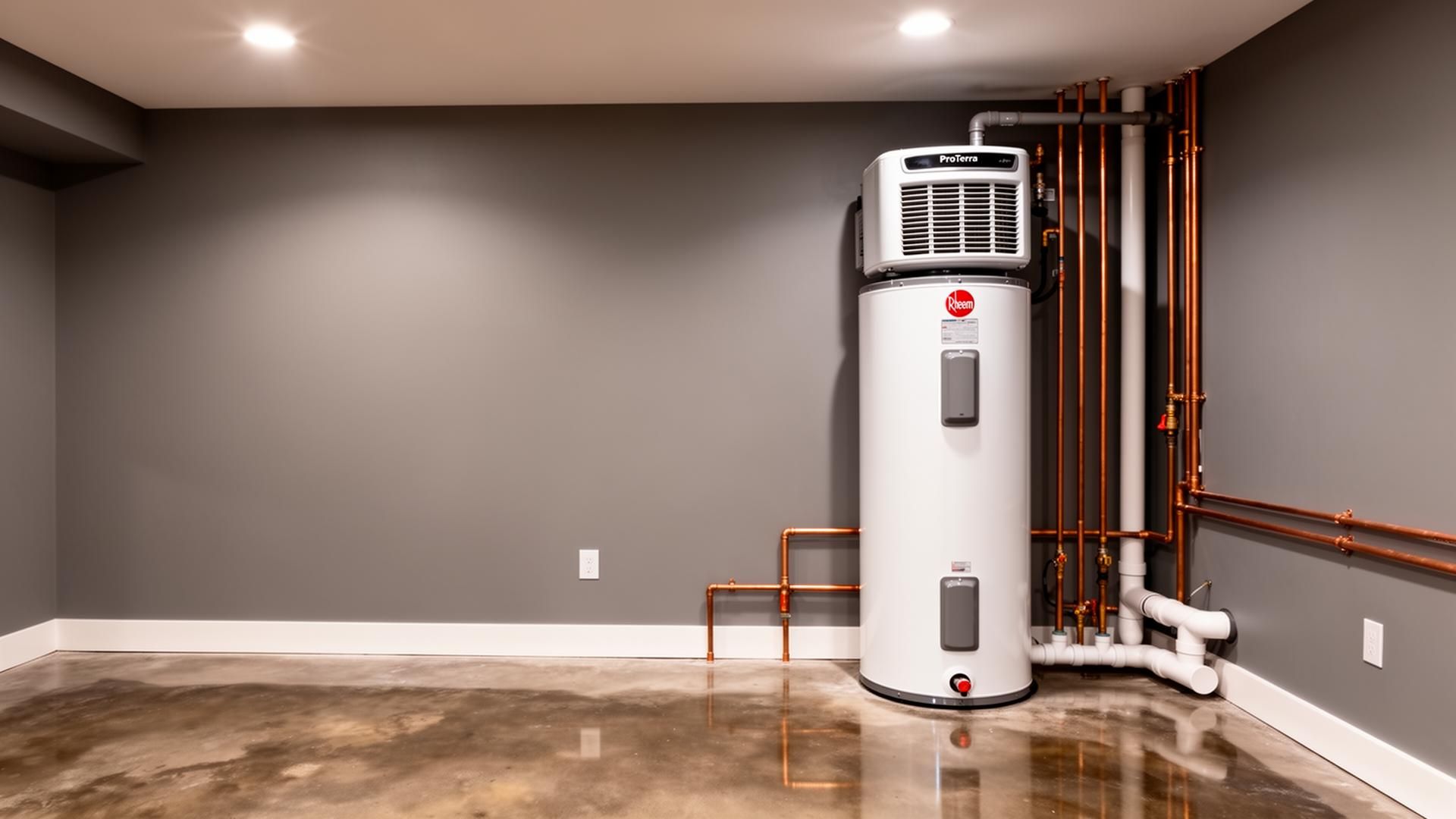

Why it works: Hybrid heat pump water heaters (HPWHs) need 700+ cubic feet of room volume to pull ambient heat from. A finished basement mechanical room — painted walls, sealed concrete floor, basic LED downlights — gives them the volume they need and looks intentional. The unit's compressor on top reads more "appliance" than "tank" once it's the only thing in the room.

Recommended unit type: Rheem ProTerra (UEF 4.0, qualifies for IRA $2,000 tax credit), A.O. Smith Voltex AL, or State Premier hybrid. 50–80 gallon capacity, 75" tall — confirm ceiling height before ordering.

No email required — we'll call you.

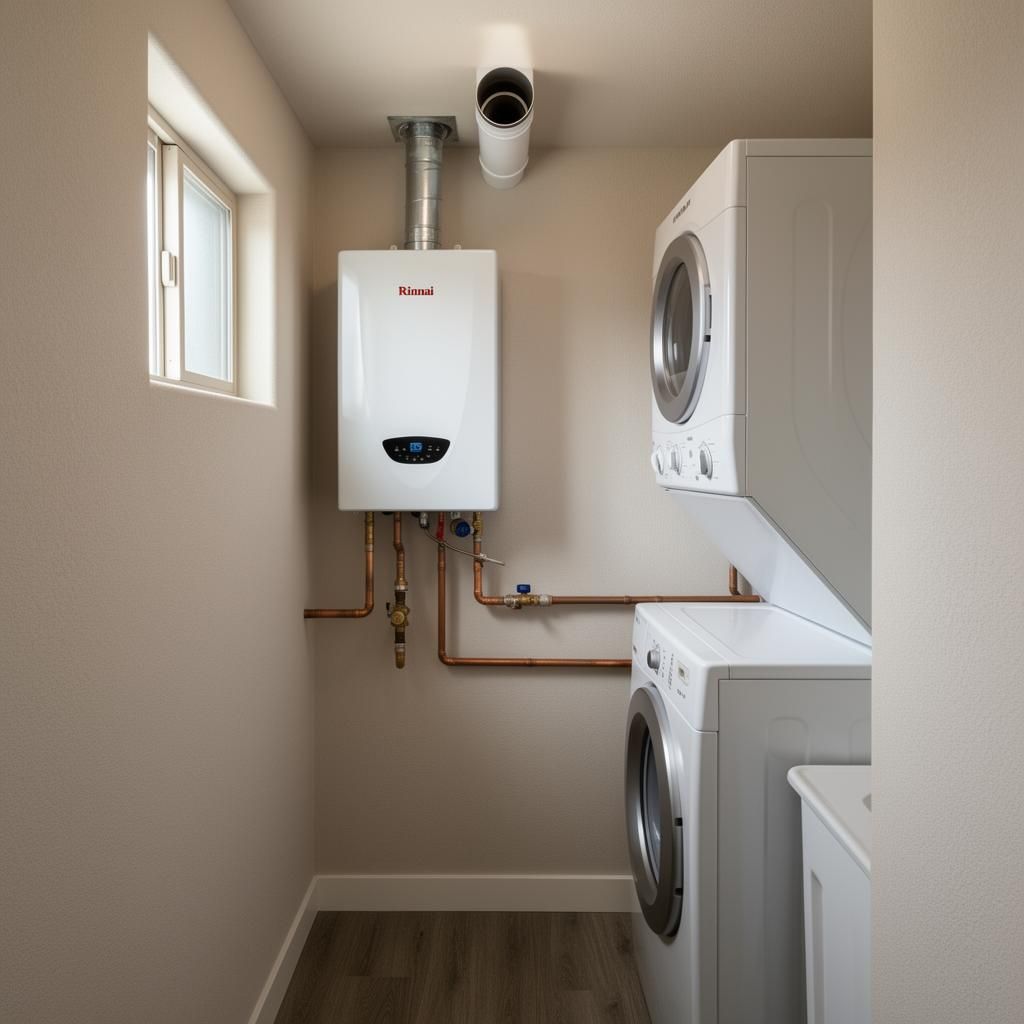

Why it works: Mounting the tankless on the back wall of a laundry closet — above the washer/dryer stack — puts it close to the highest hot-water demand point in the home (the washer) and keeps it completely out of sight behind a louvered door. Vent runs straight up through the ceiling.

Recommended unit type: Slim wall-mount tankless (any condensing model). Confirm minimum clearances from the dryer vent and that the closet has the makeup-air openings the manufacturer requires.

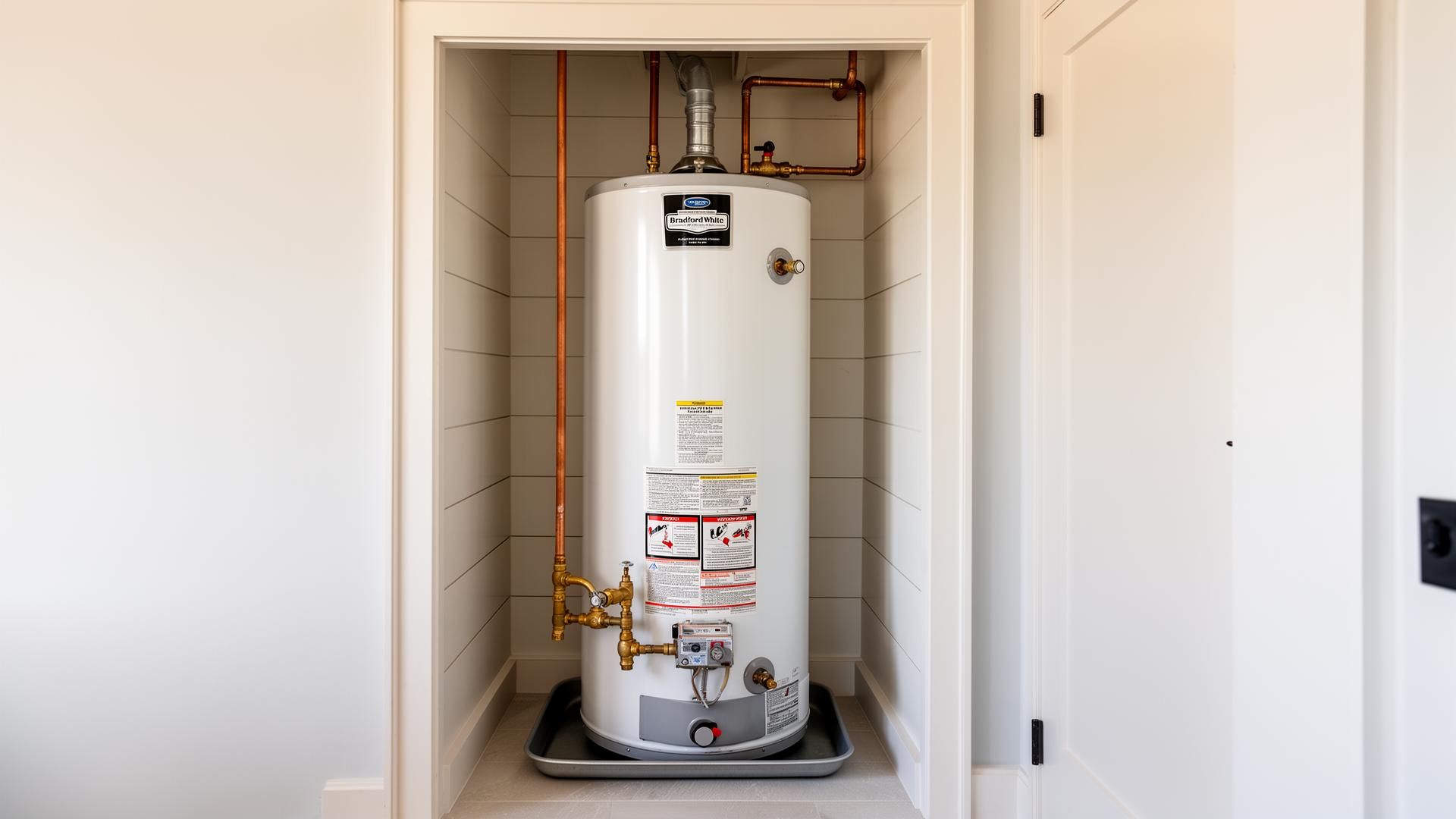

Why it works: Not every home is right for tankless or hybrid. When a traditional 50-gallon tank is the right call (faster recovery for big families, no electrical upgrade needed), the design move is recessing it into a dedicated alcove with shiplap walls, brass shutoffs instead of plastic, and a clean drain pan. The unit becomes a feature, not a problem.

Recommended unit type: Bradford White RG250T6N (50 gallon, atmospheric vent) or Rheem Performance Platinum gas tank. Bradford White is our contractor's-choice pick for traditional tanks — built specifically for the wholesale plumbing channel.

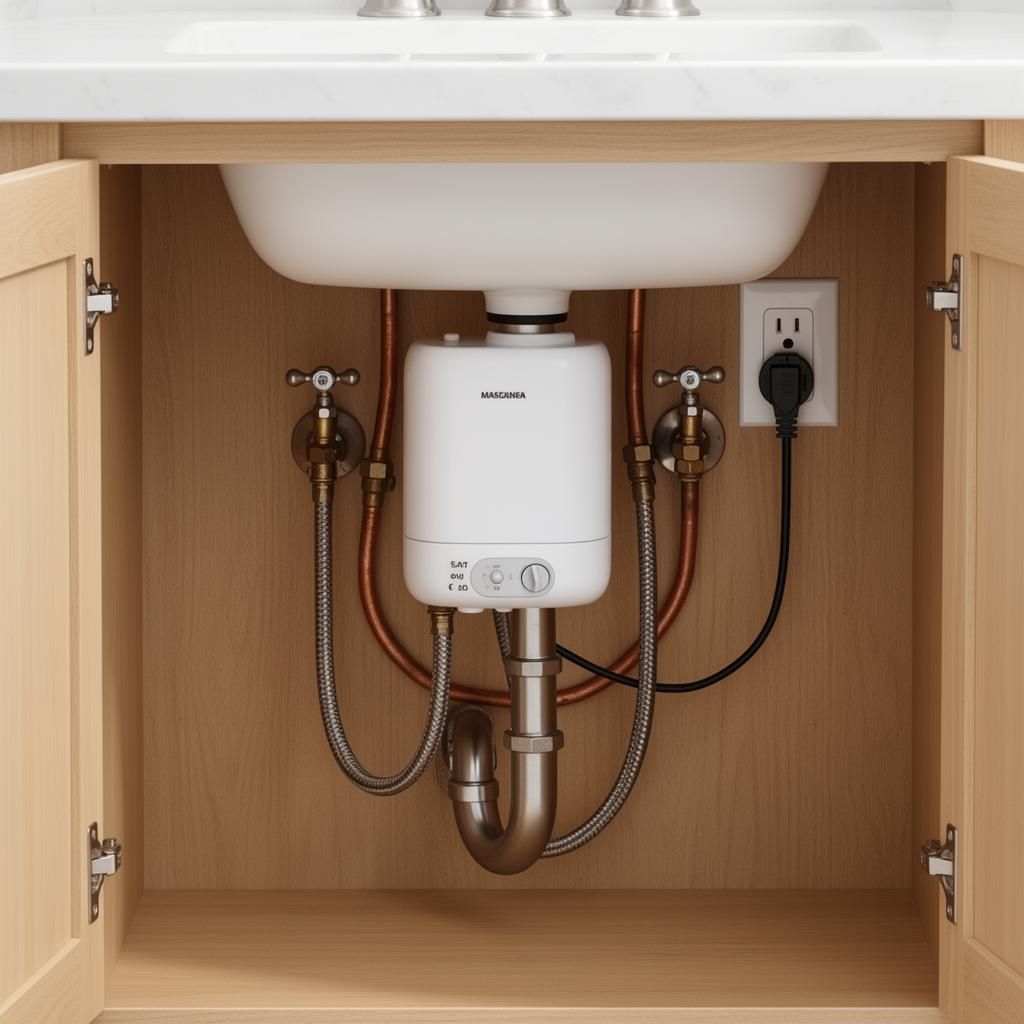

Why it works: If your kitchen or guest bath is 40+ feet of pipe run from the main water heater, you're wasting water (and patience) every time you turn on the faucet. A 2.5–7 gallon point-of-use mini tank tucked under the sink delivers instant hot water at that fixture without re-plumbing the whole house. Mounted vertically against the cabinet's back wall, it disappears.

Recommended unit type: Bosch Tronic 3000T (2.5 or 4 gallon, 120V plug-in) or Stiebel Eltron SHC. Plugs into a standard outlet — no dedicated circuit, no venting.

1. Give it its own wall. A water heater shoved next to a furnace, softener, and electrical panel reads as clutter. Dedicate one wall (or one alcove) to it.
2. Run pipes vertically and parallel. Random elbows and crossings are 80% of why utility installs look bad. Long straight runs read as design.
3. Brass over plastic. Replace plastic shutoff valves with brass quarter-turn ball valves. Same function, ten times the visual quality.
4. Hide or feature the placard. The yellow data sticker is the only ugly part of any modern water heater. Either rotate the unit so it faces a wall, or add a thin hinged trim panel.

Most of these scenarios are common Long Island retrofits — finished basements, garage installs, hallway closets, and alcoves carved out of utility rooms. Home+ Air and Heat installs tankless, hybrid heat pump, and traditional tank water heaters across Nassau County and Western Suffolk with attention to placement that respects the room.

If you're picking a unit, our 2026 water heater brand rankings compare every major manufacturer on warranty, recovery rate, and real Long Island reliability data, and our water heater installation page covers what's included with a Home+ install. For the design ideas above, our installers can spec the right unit for your space — recessed alcove, garage wall, basement mechanical room, or under-sink.

We install across Nassau and Western Suffolk including Garden City, Manhasset, Great Neck, and Huntington — older homes in these neighborhoods are prime candidates for tankless retrofits and hybrid heat pump conversions.
