Repair · Levittown, NY · September 2026

Boiler Control Board & Low-Water Cut-Off Repair in Levittown

No heat, no hot water and a burning smell: a 2016 New Yorker gas boiler gets a new control board and safety cut-off.

The original control board, its display reading "StA" (status). The boiler was sitting in standby and not running.

Photos are lightly enhanced for clarity. The work shown is as installed or serviced.

The problem

The gas boiler stopped running overnight, leaving the home with no heat and no hot water. The homeowner noticed an electrical burning smell, and the boiler was showing standby. On the diagnostic visit, the 2016 New Yorker PVCG-50 was in standby and not running. Together with the burning smell, that pointed to the control board as the part to replace. The next day, the homeowner also approved replacing the boiler's low-water cut-off safety device.

Our solution

We replaced the boiler's control board, verified the wiring and tested the system. We also replaced the low-water cut-off. This safety switch shuts the burner down if the water level inside the boiler drops too low, protecting the boiler from firing dry. That job covered the wiring and piping connections and an operational test.

The result

The homeowner approved both repairs, and we completed them. The job closed out in September 2026 with a new control board and a new low-water cut-off in place, each wired and tested.

Serviced

New Yorker Boiler Co PVCG-50 natural-gas boiler (2016, 140 MBH input): repaired
Boiler control board, Part No. 103966-02: existing board, replaced with a new control board
Hydrolevel Safgard Model 1100 low-water cut-off: existing safety device, replaced

Highlights

No heat, no hot water and an electrical burning smell, starting the night before the call
2016 New Yorker PVCG-50 natural-gas boiler found in standby and not running
Boiler control board replaced, wiring verified and system tested
Low-water cut-off safety device replaced, with wiring, piping and an operational test
Both repairs approved and completed over two days in September 2026

Scope of work

01Diagnosed a no-heat, no-hot-water call on a 2016 New Yorker PVCG-50 gas boiler that was sitting in standby
02Replaced the boiler's integrated control board
03Verified the control wiring and tested the system after the board replacement
04Replaced the boiler's low-water cut-off, the safety switch that protects the boiler from firing dry
05Made the wiring and piping connections for the new cut-off and ran an operational test

More photos from the job

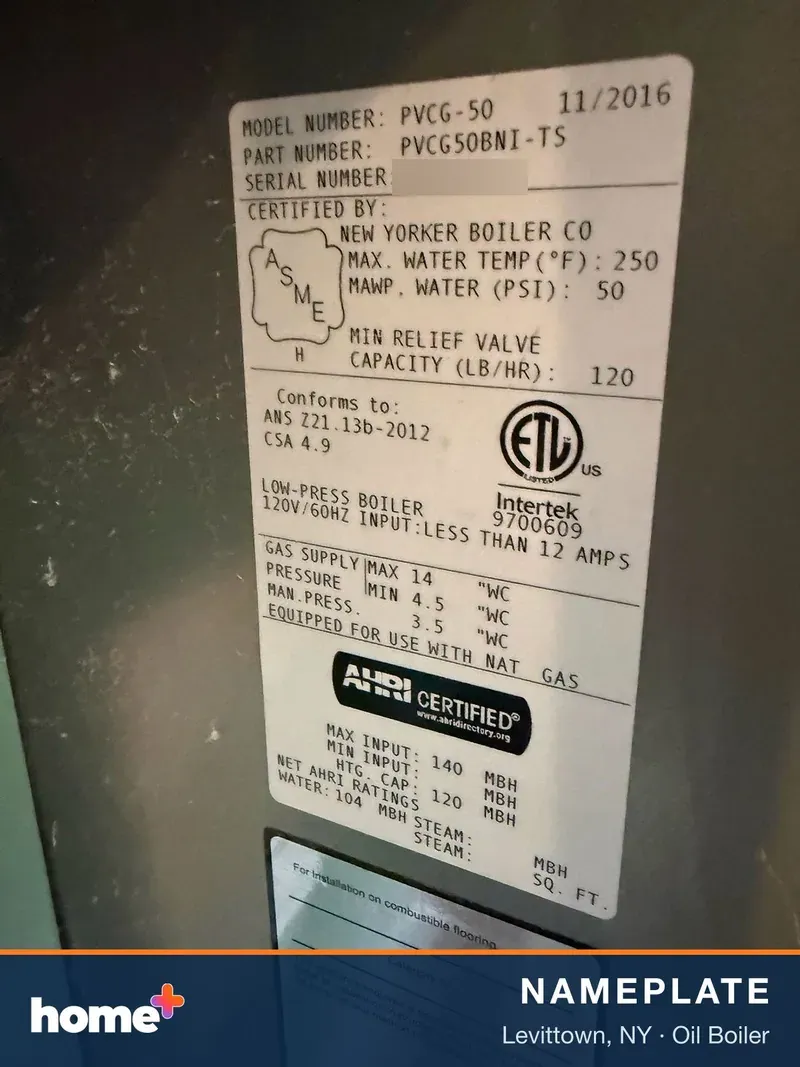

The boiler on this call: a 2016 New Yorker PVCG-50, a natural-gas, low-pressure boiler rated at 140 MBH input.

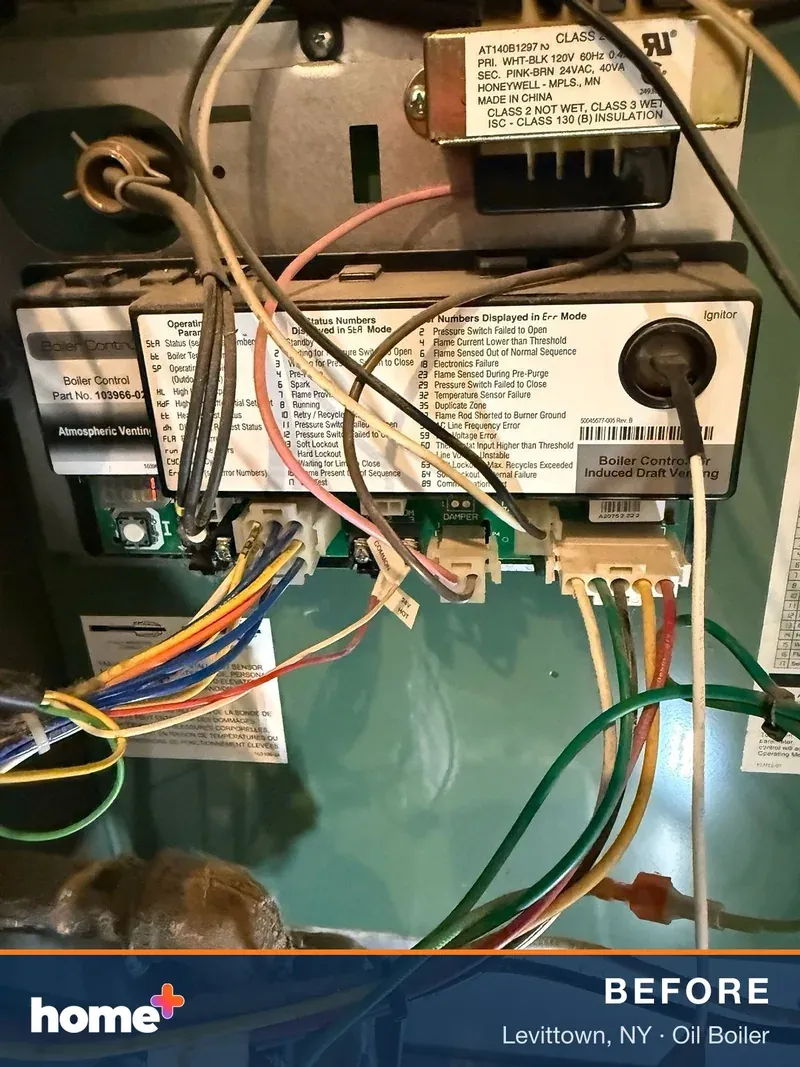

Inside the cabinet: the old control board and wiring harness. We replaced the board, verified the wiring and tested the system.

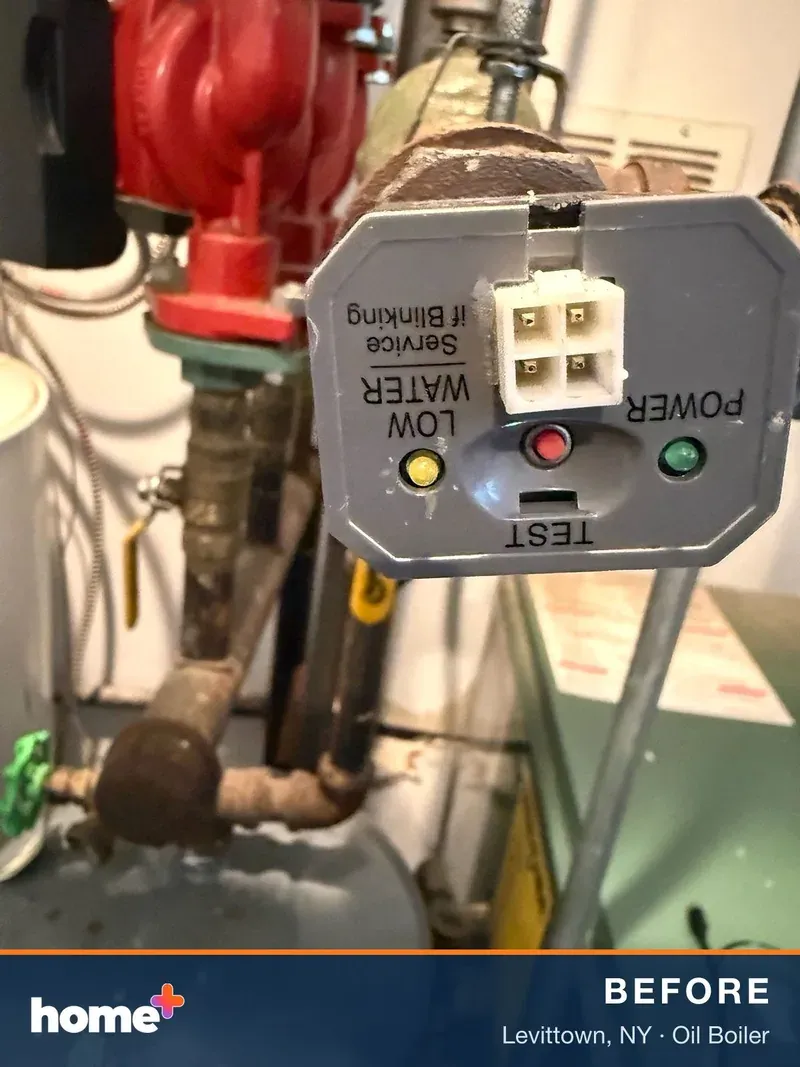

The existing low-water cut-off. This safety switch shuts the burner off if water runs low, protecting the boiler from firing dry.

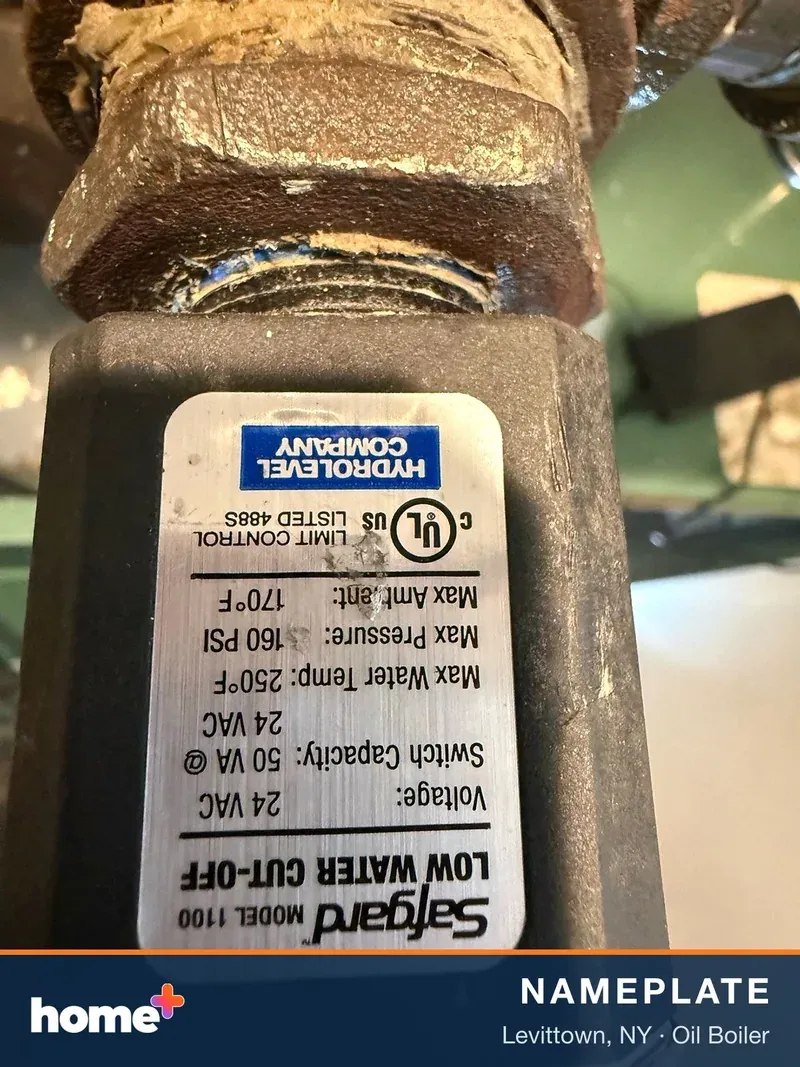

Label on the old Hydrolevel Safgard 1100 low-water cut-off (24 VAC). We replaced it with a new cut-off and tested it.
