Replacement & installation · Albertson, NY · June 2026
Daikin 4-Zone Ductless Heat Pump Replacement in Albertson
A 2016 R-410A Daikin multi-zone system replaced with a new 20 SEER2 Daikin R-32 heat pump on a proper pad
Before
AfterPhotos are lightly enhanced for clarity. The work shown is as installed or serviced.
The problem

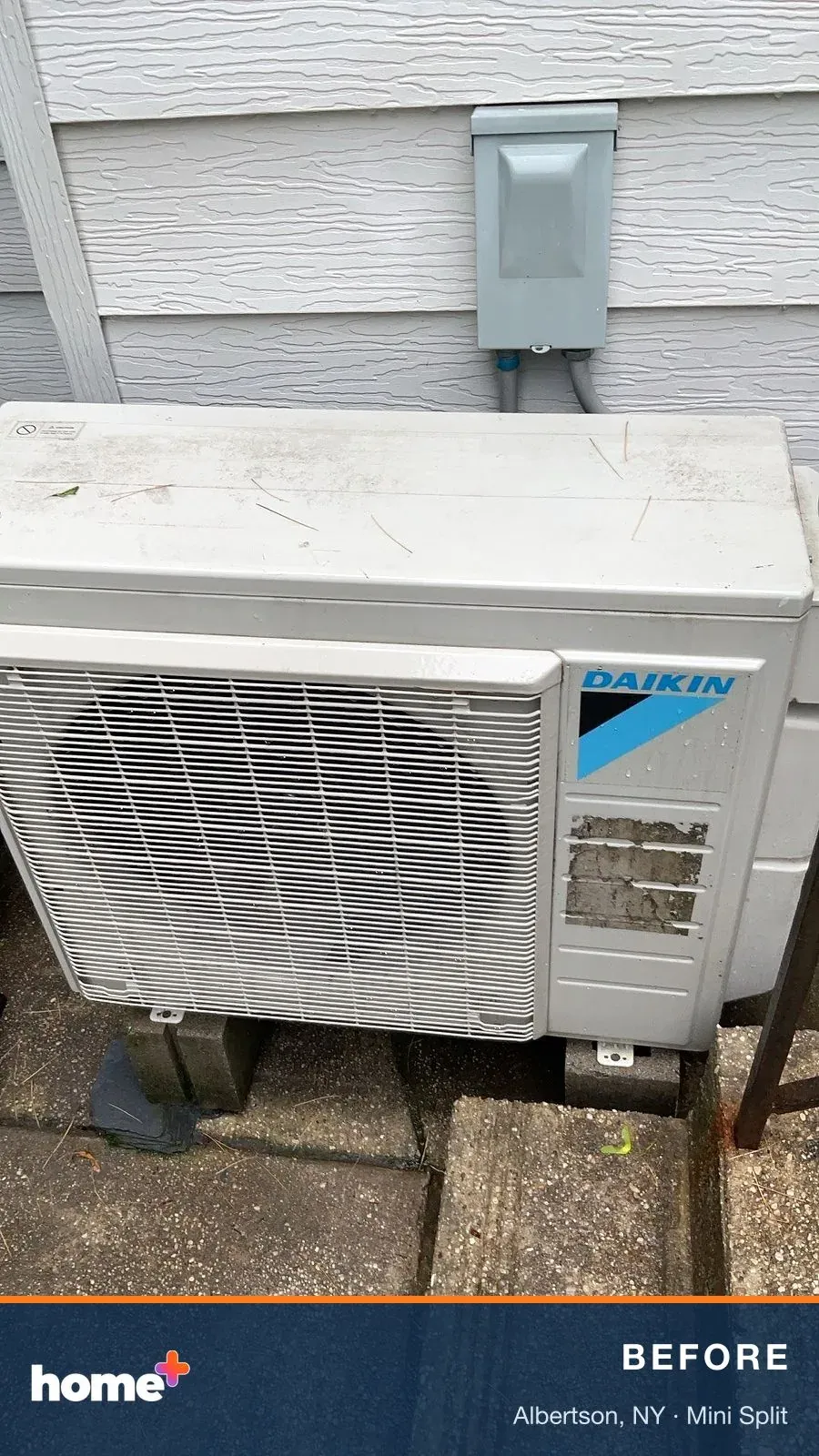

This Albertson home's ductless system stopped cooling in late May, and we came out on a service call to diagnose it. The outdoor unit was a Daikin 4-zone heat pump built in 2016. It ran on R-410A refrigerant and sat on cinder blocks next to the steps. After that visit, the homeowners chose to replace the whole system rather than repair it.
Our solution

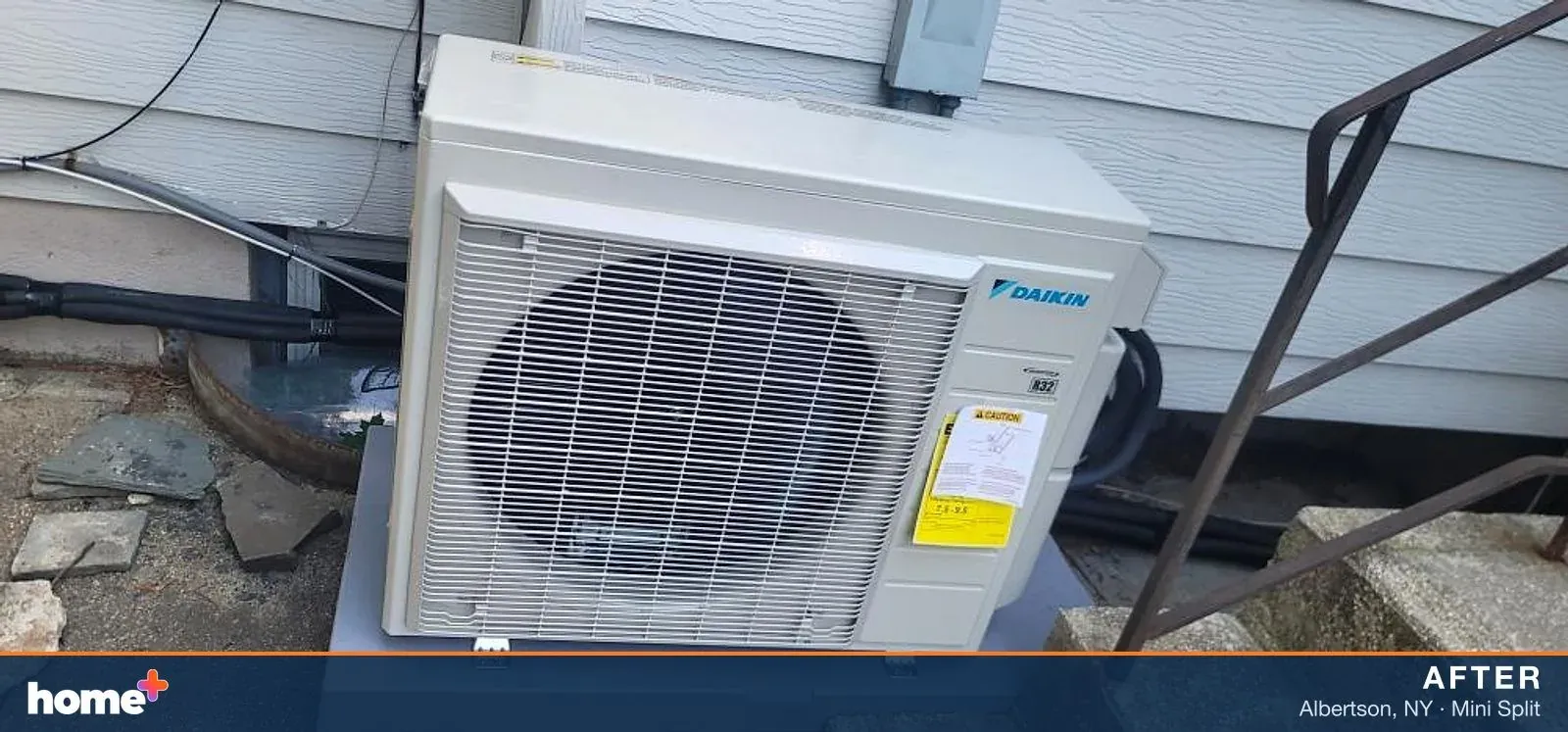

We took out the old outdoor unit and disconnected its line sets at the wall. A new Daikin 4MXM36AVJU9 went in the same spot. It's a 36,000 BTU, 4-zone inverter heat pump rated 20 SEER2 that runs on R-32 refrigerant, and it now sits on a new equipment pad instead of cinder blocks. New insulated refrigerant line sets run to the new outdoor unit, and we added a surge protector to help protect the compressor, control board and fan motors from power spikes. Indoors, we installed new Daikin FTXV-series wall units. Before mounting, the new wall units had their refrigerant lines and drain wrapped together and their wiring connected at the terminal block. A 4-zone installation kit supplied the materials for the indoor units.
The result
The home now has a new, matched Daikin 4-zone ductless heat pump system on R-32 refrigerant, and each zone can be set to its own temperature. The outdoor unit sits on a proper pad with new insulated line sets, and there are new wall units inside, so the house is set up for reliable heating and cooling room by room.
Installed
- Daikin 4MXM36AVJU9 36K BTU 4-zone outdoor heat pump, R-32, 20 SEER2 (installed)
- Daikin FTXV-series wall-mounted indoor units, FTXV15AVJU9 label photographed (installed)
- HVAC surge protector on the outdoor unit (installed)
- Daikin 4MXS36NMVJU 4-zone outdoor heat pump, manufactured 2016, R-410A (removed)
Highlights
- Replaced a 2016 Daikin 4-zone outdoor unit that ran on R-410A with a new Daikin 4MXM36AVJU9 (36K BTU, 20 SEER2, R-32)
- New Daikin FTXV-series wall units installed indoors
- New outdoor unit set on a new equipment pad in place of the old cinder blocks
- New insulated refrigerant line sets run to the new outdoor unit
- Surge protector added to protect the outdoor unit's compressor, control board and fan motors
- Started as a no-cooling service call; the homeowners chose replacement over repair
Scope of work
- 01Diagnosed the original system on a no-cooling service call
- 02Removed the old Daikin 4MXS36NMVJU outdoor unit and disconnected its line sets at the wall
- 03Set a new equipment pad where the old cinder blocks had been
- 04Installed a new Daikin 4MXM36AVJU9 36K BTU 4-zone outdoor heat pump (R-32, 20 SEER2)
- 05Installed new Daikin FTXV-series wall-mounted indoor units, with line sets and drains wrapped and wiring connected at the terminal block
- 06Ran new insulated refrigerant line sets to the new outdoor unit
- 07Installed a surge protector on the outdoor unit
- 08Supplied a 4-zone mini-split installation kit for the indoor units
More photos from the job
-

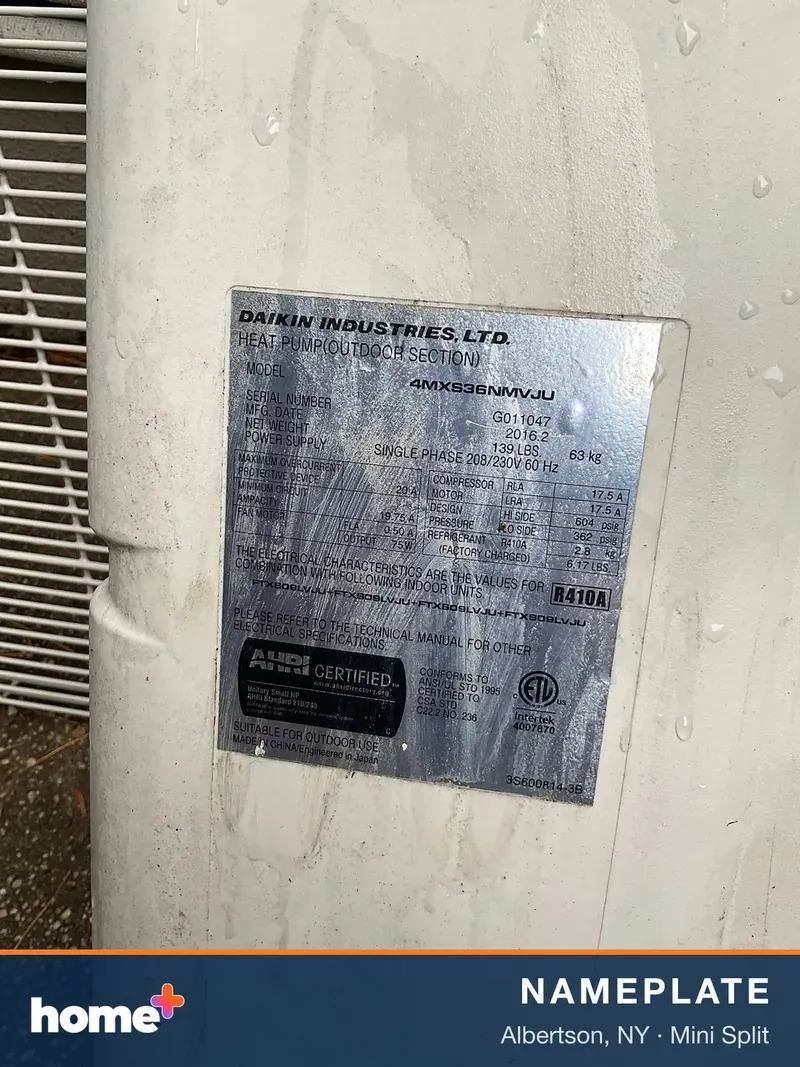

The old nameplate: Daikin 4MXS36NMVJU, made in 2016 and running on R-410A. -

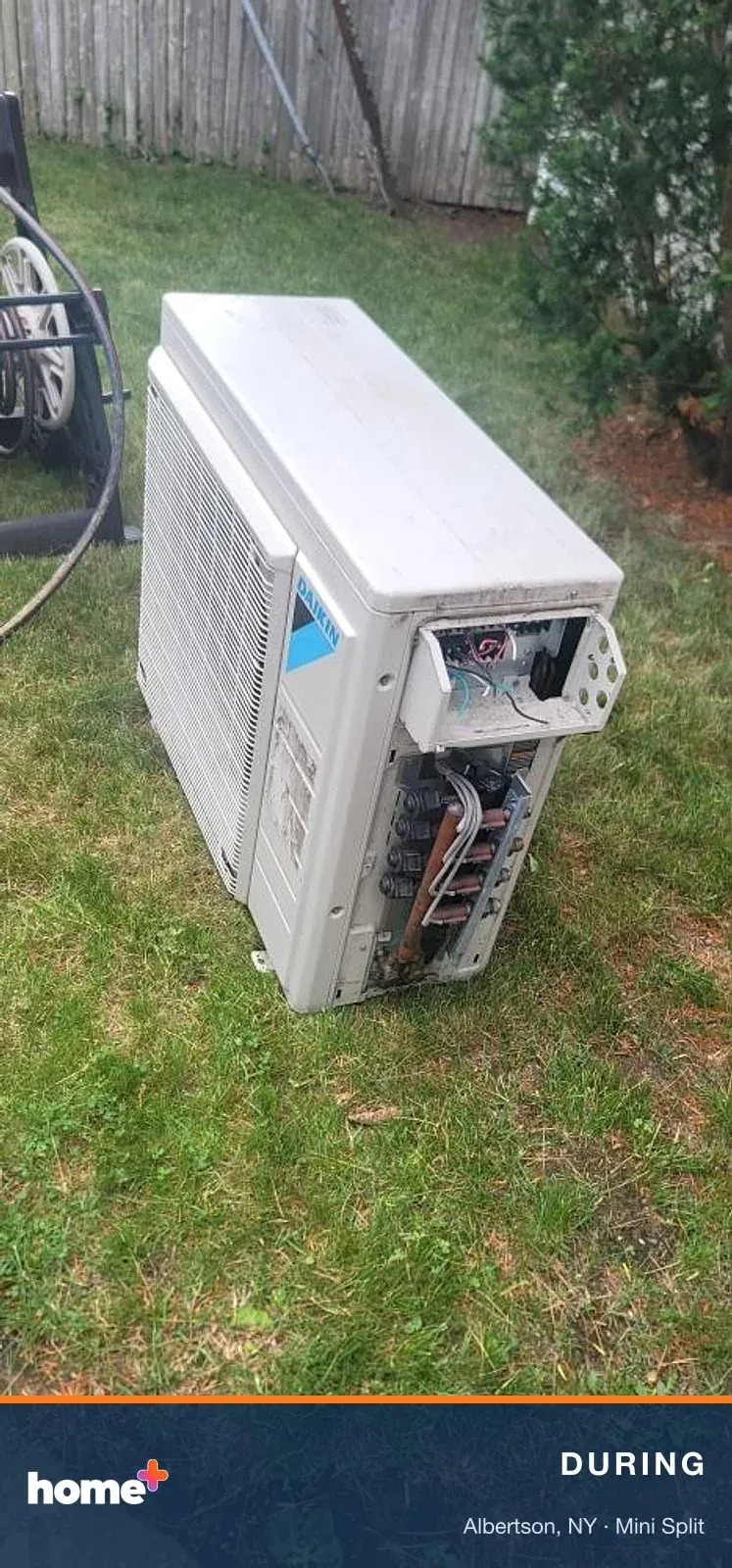

The old outdoor unit after removal, on the lawn with its service panel open. -

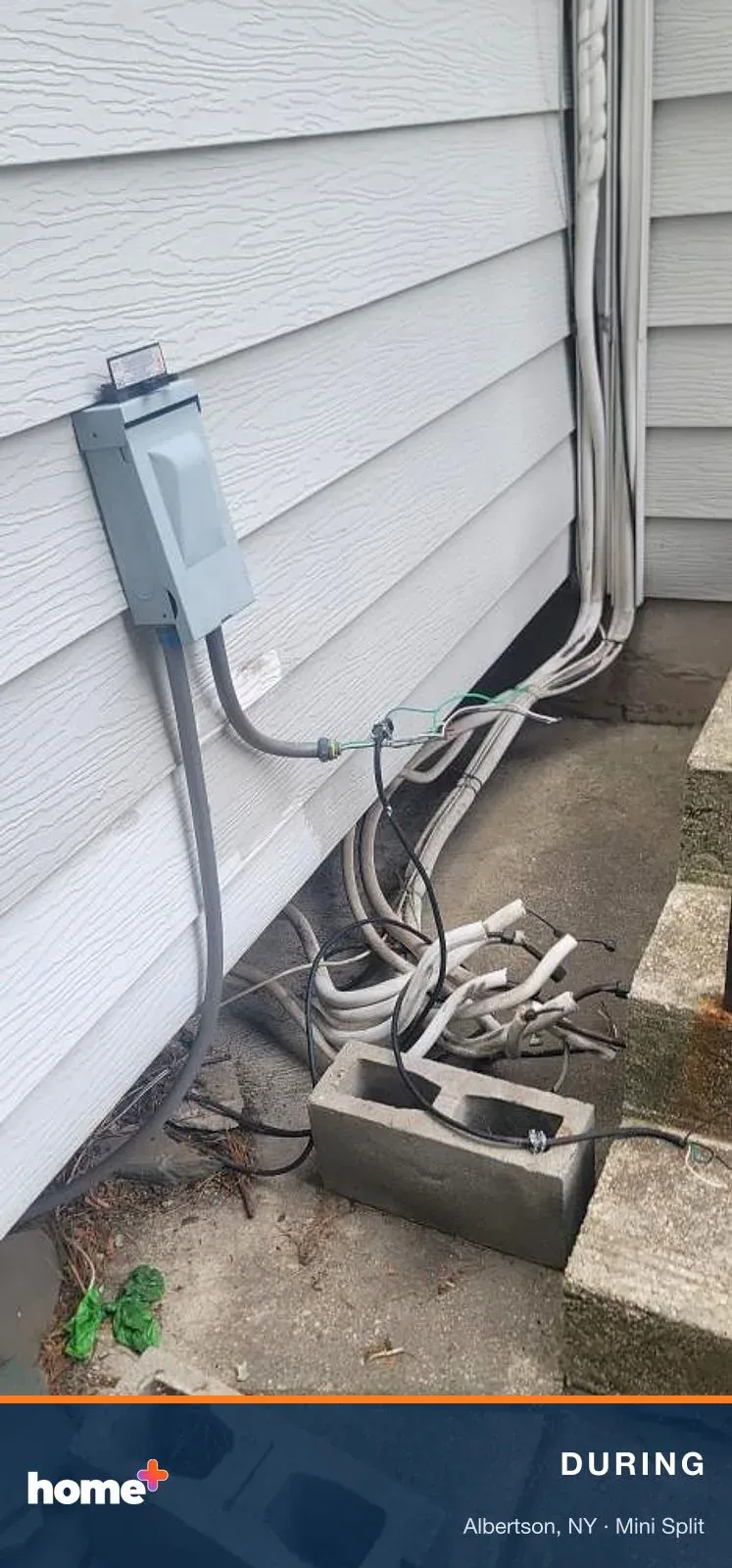

With the old unit out, its line sets are disconnected at the wall where it once sat on cinder blocks. -

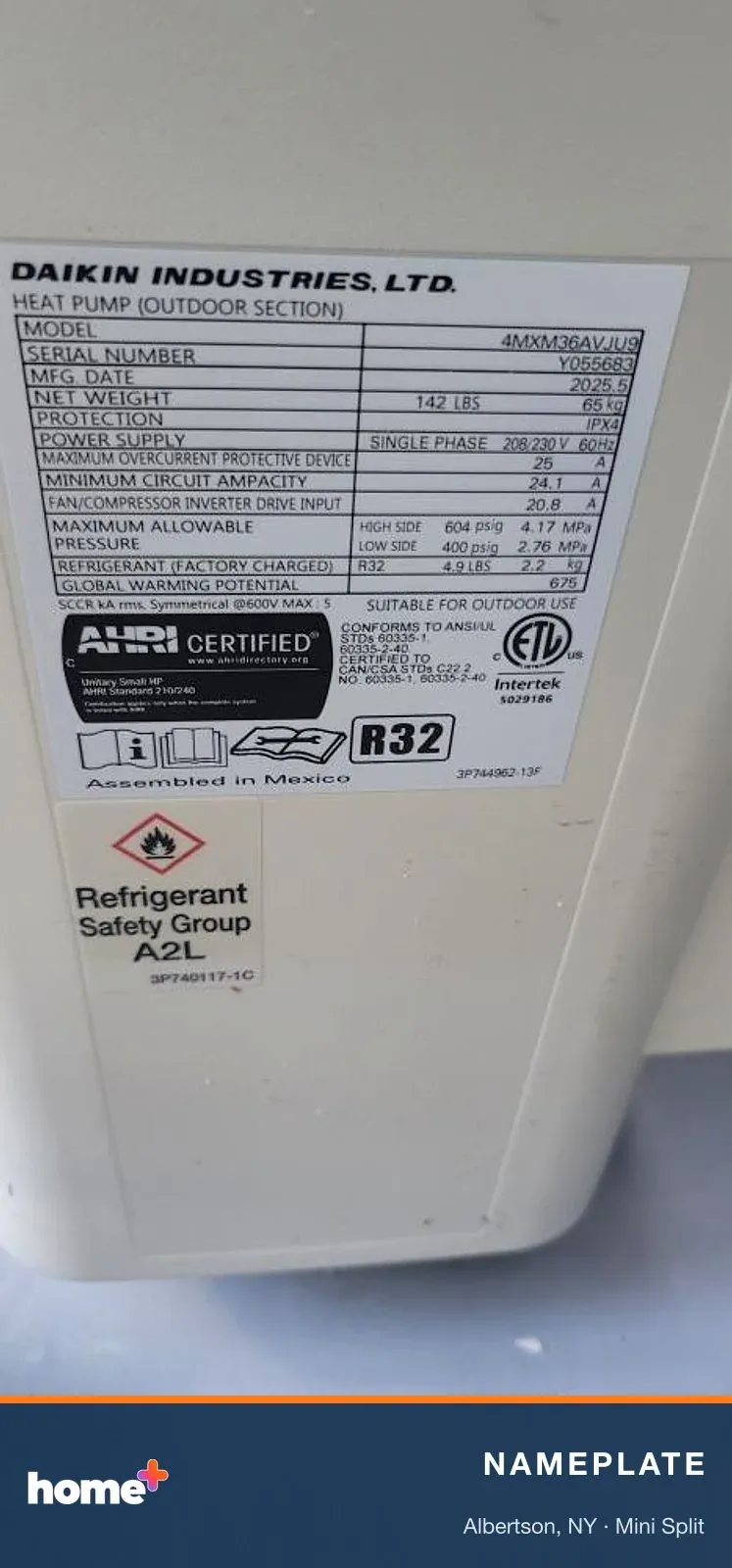

The new nameplate: Daikin 4MXM36AVJU9, made in 2025 and running on R-32.
