Repair · Roslyn, NY · September 2026
Goodman Furnace Draft Inducer Motor Replacement in Roslyn
A new inducer motor, combustion safety checks and a gas burner emergency shut-off for a horizontal Goodman furnace

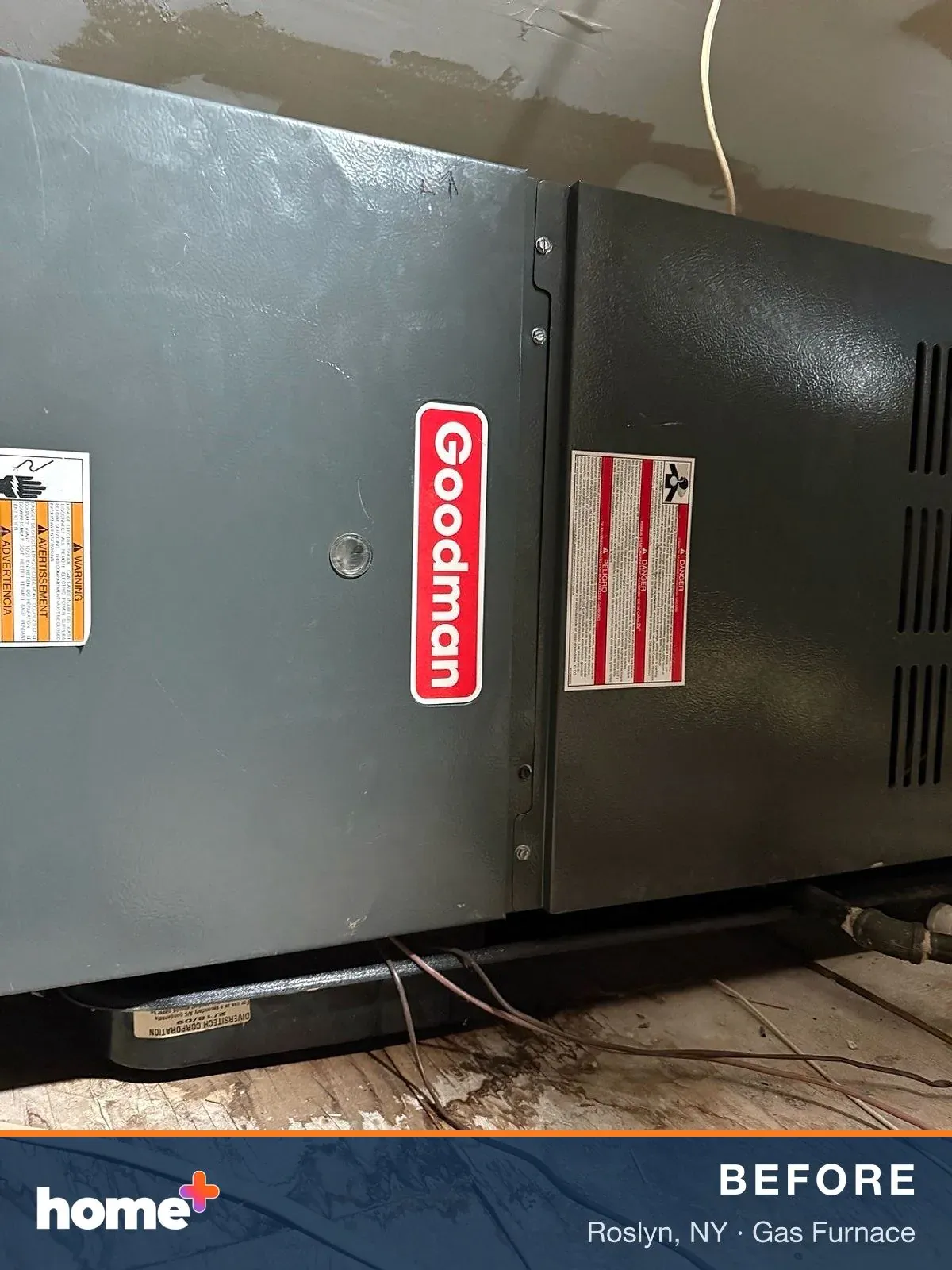

Before
AfterPhotos are lightly enhanced for clarity. The work shown is as installed or serviced.
The problem
A Roslyn homeowner booked an HVAC diagnostic, and it found that the draft inducer motor on their Goodman gas furnace needed to be replaced. The furnace is installed horizontally, lying on its side. On a furnace like this, the burners aren't allowed to light until that motor has established draft. When the furnace calls for heat, the inducer starts first, and it carries combustion gases through the furnace and out the vent while the furnace runs.
Our solution
Once the homeowner approved the repair, we replaced the draft inducer motor assembly, including its wiring, mounting hardware and gasket, and ran combustion safety checks. During our visits we also took carbon monoxide readings at the home's vents, and the meter read 0 PPM. We also installed a red Gas Burner Emergency Off switch so the furnace can be shut down without going to the breaker panel. A heating tune-up was completed as part of the same job.
The result

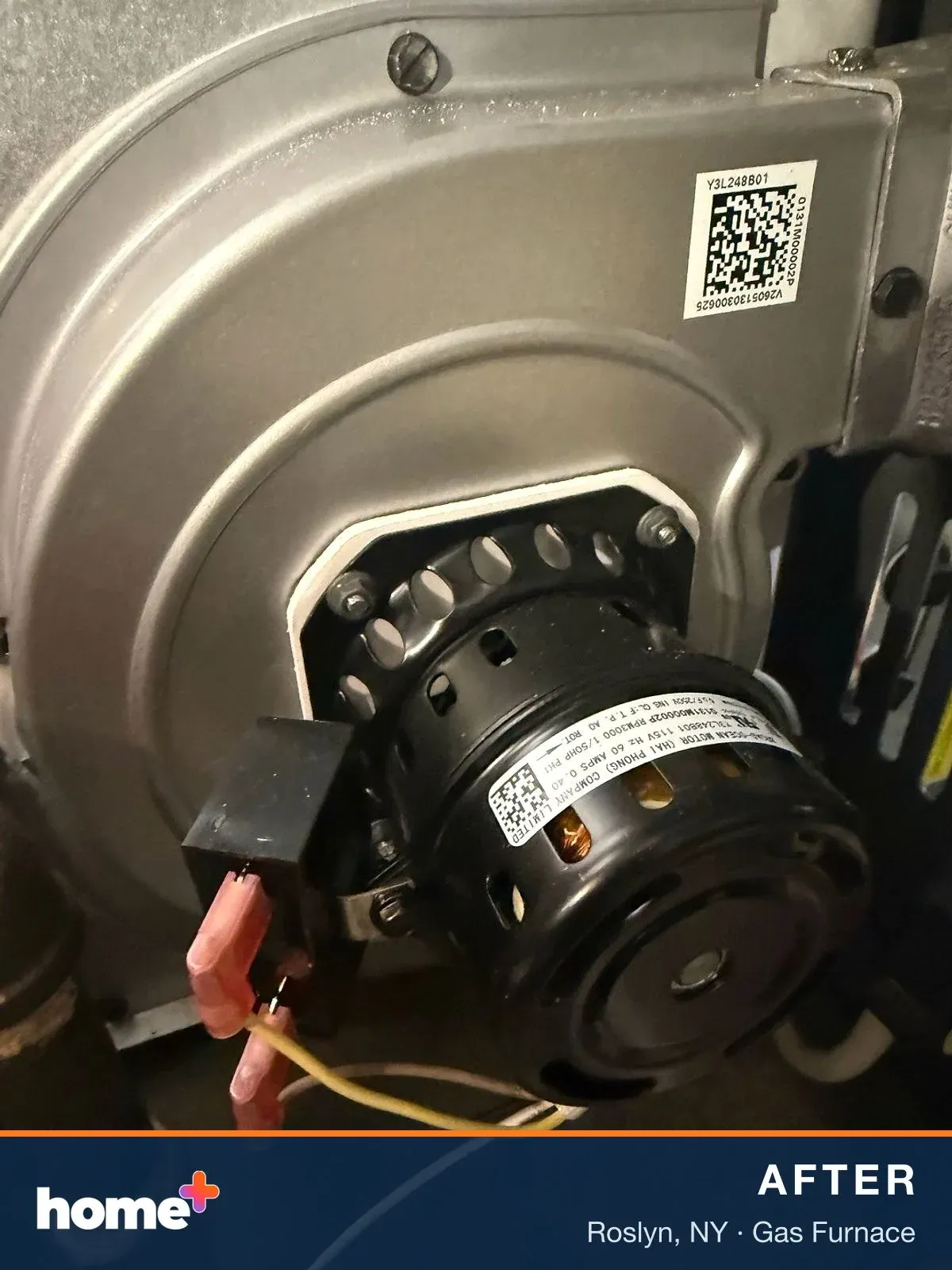

The new inducer motor is mounted and wired on the furnace's inducer housing. The household now has a clearly labeled emergency shut-off for the gas burner, and the heating tune-up is done.
Serviced
- Goodman GMS81155CNBD gas furnace (existing unit, repaired)
- Draft inducer motor assembly, part no. 0131M00002P per its label (installed)
- Gas Burner Emergency Off shut-off switch (installed)
Highlights
- HVAC diagnostic found that the furnace's draft inducer motor needed replacing
- Replaced the draft inducer motor assembly, including wiring, mounting hardware and gasket
- Ran combustion safety checks as part of the motor replacement
- Carbon monoxide readings taken at the home's vents showed 0 PPM on the meter
- Installed a clearly labeled Gas Burner Emergency Off shut-off switch
- Heating tune-up completed on the same job
Scope of work
- 01HVAC diagnostic on the gas furnace
- 02Replaced the draft inducer motor assembly (motor, wiring, mounting hardware and gasket)
- 03Combustion safety checks as part of the inducer motor replacement
- 04Carbon monoxide readings at the home's vents
- 05Installed a Gas Burner Emergency Off shut-off switch
- 06Heating tune-up
More photos from the job
-

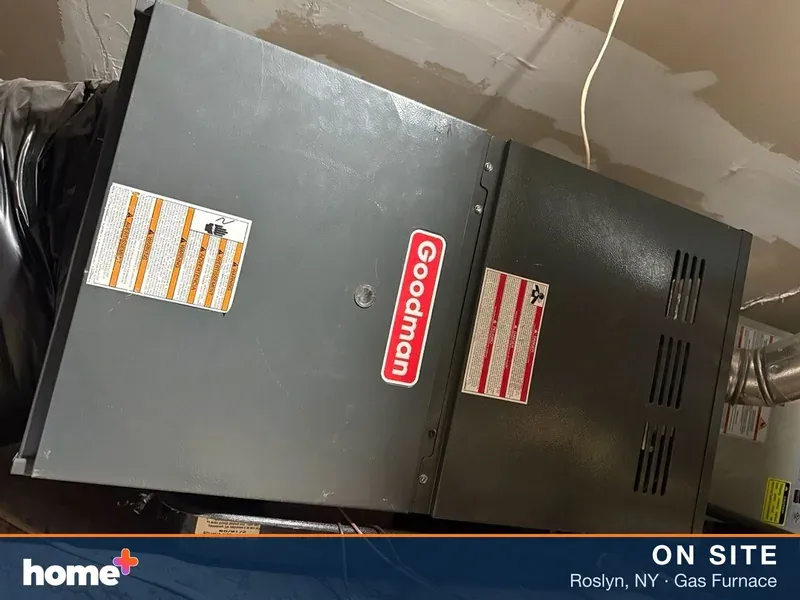

The Goodman gas furnace is installed horizontally, lying on its side and connected to the home's ductwork. -

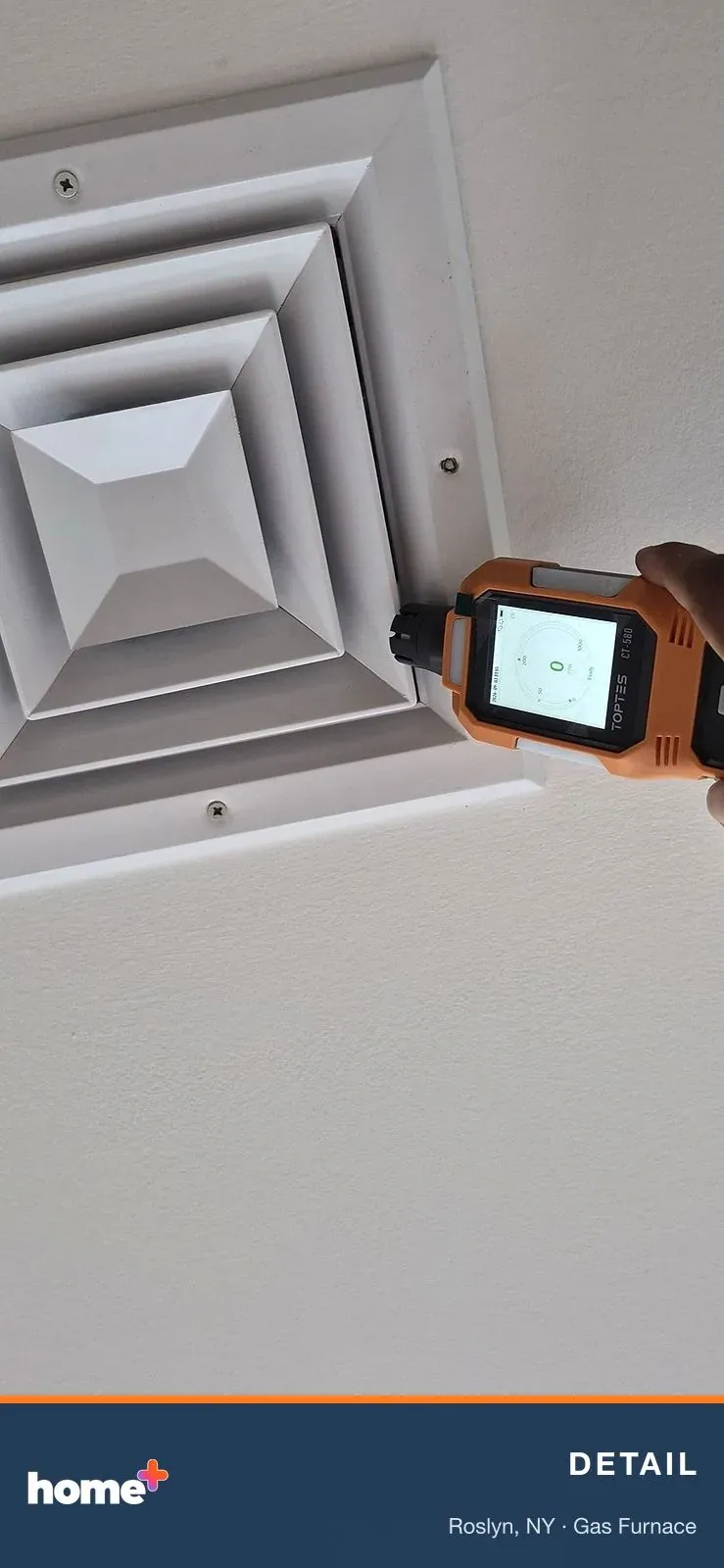

Checking for carbon monoxide at a ceiling diffuser. The meter reads 0 PPM. -

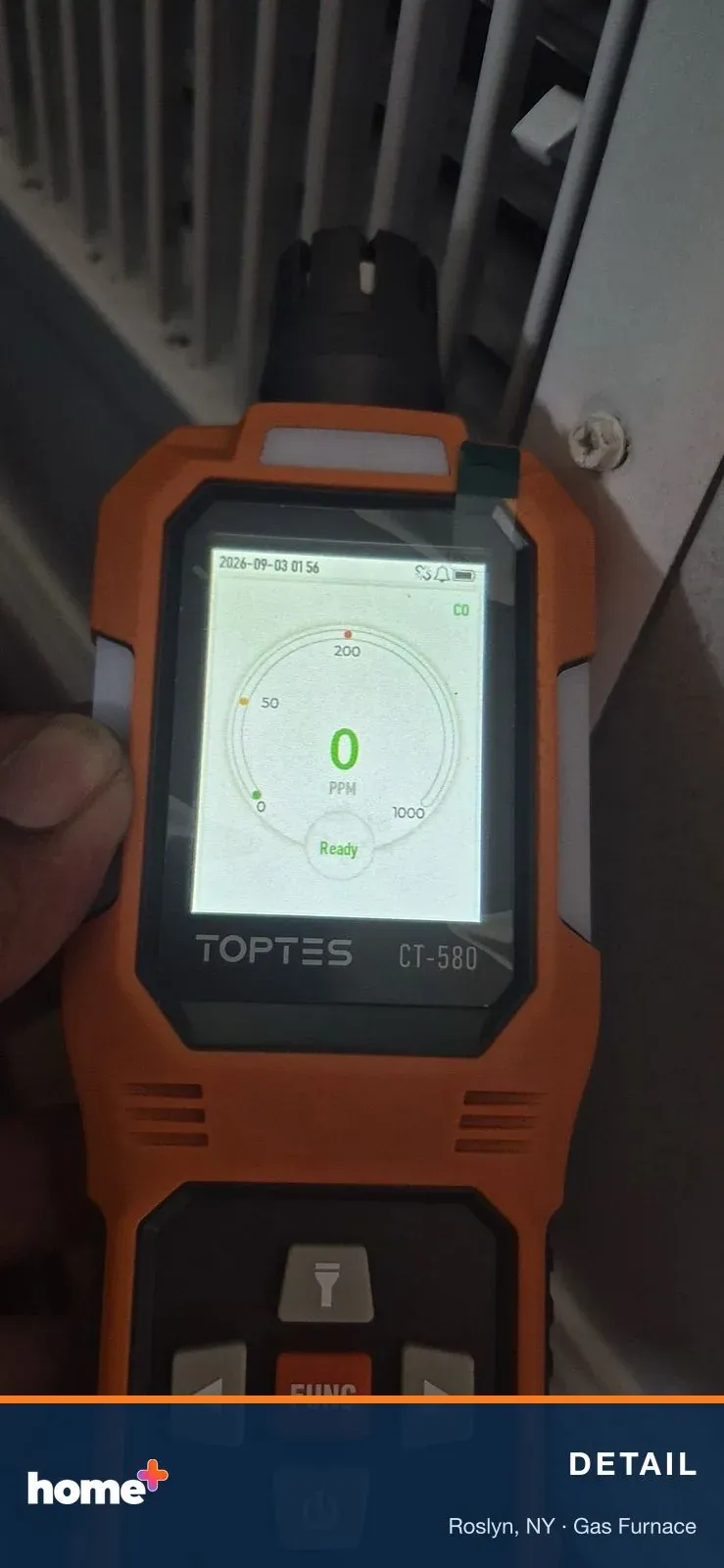

Close-up of the CO meter at an air grille, reading 0 PPM. -

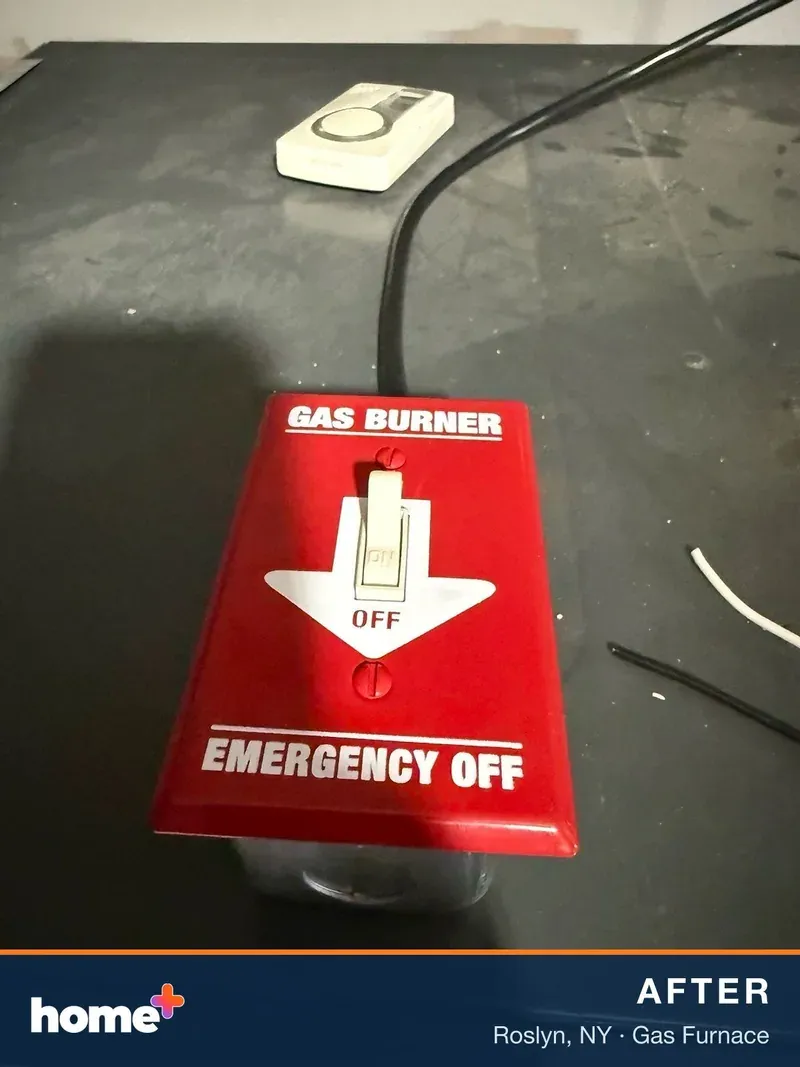

A red Gas Burner Emergency Off switch gives the household a way to shut the furnace down without going to the breaker panel.
