Repair · Carle Place, NY · September 2026
Attic Air Handler Overflow Protection & AC Tune-Up in Carle Place
Condensate traps brushed out on two attic air handlers, a new float safety switch, and a cooling tune-up.
BeforeAfter
↔
Drag the handle, or focus it and use the arrow keys.
- Before

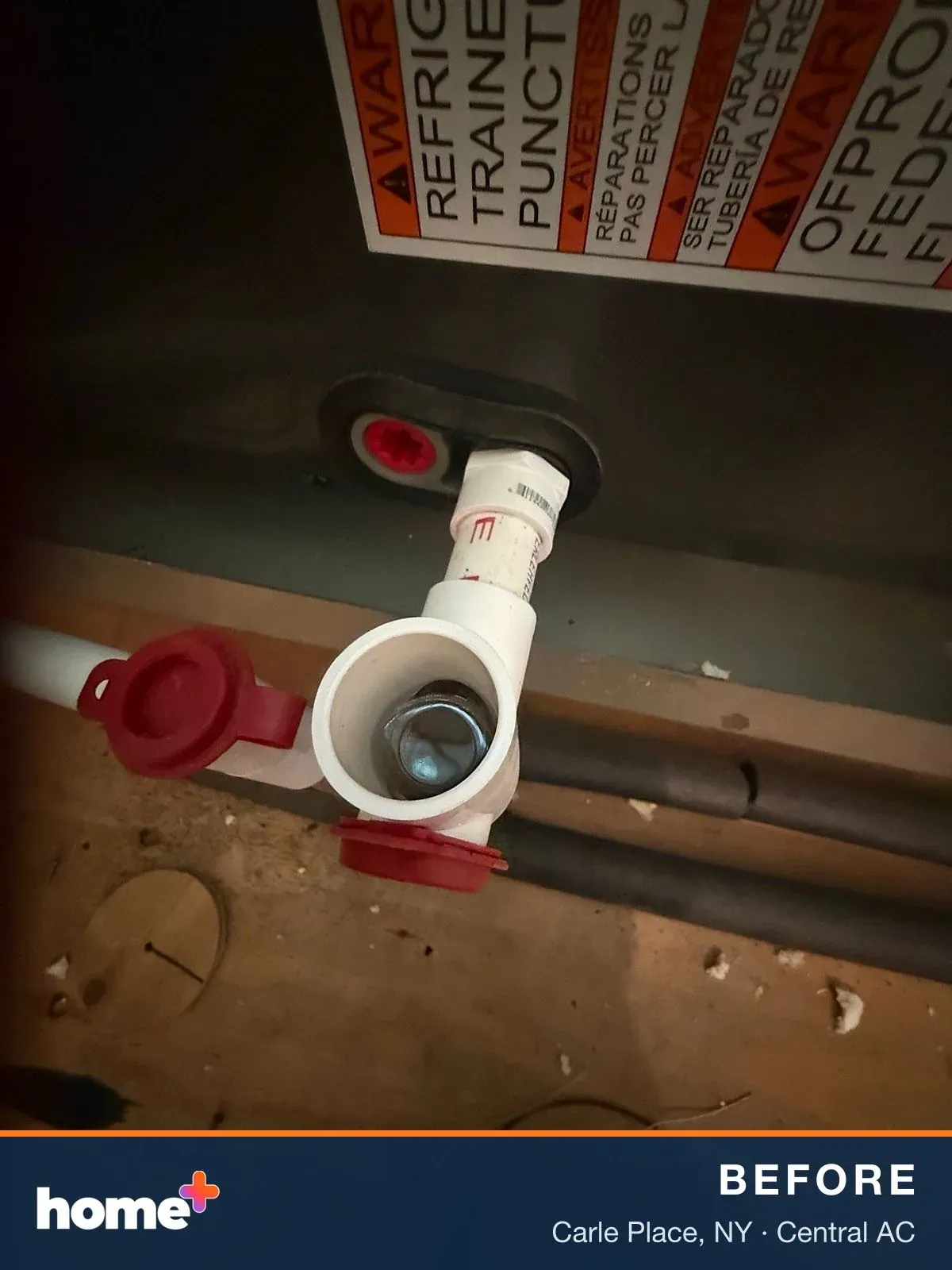

- Before: this air handler's condensate trap had no overflow safety switch.
- After

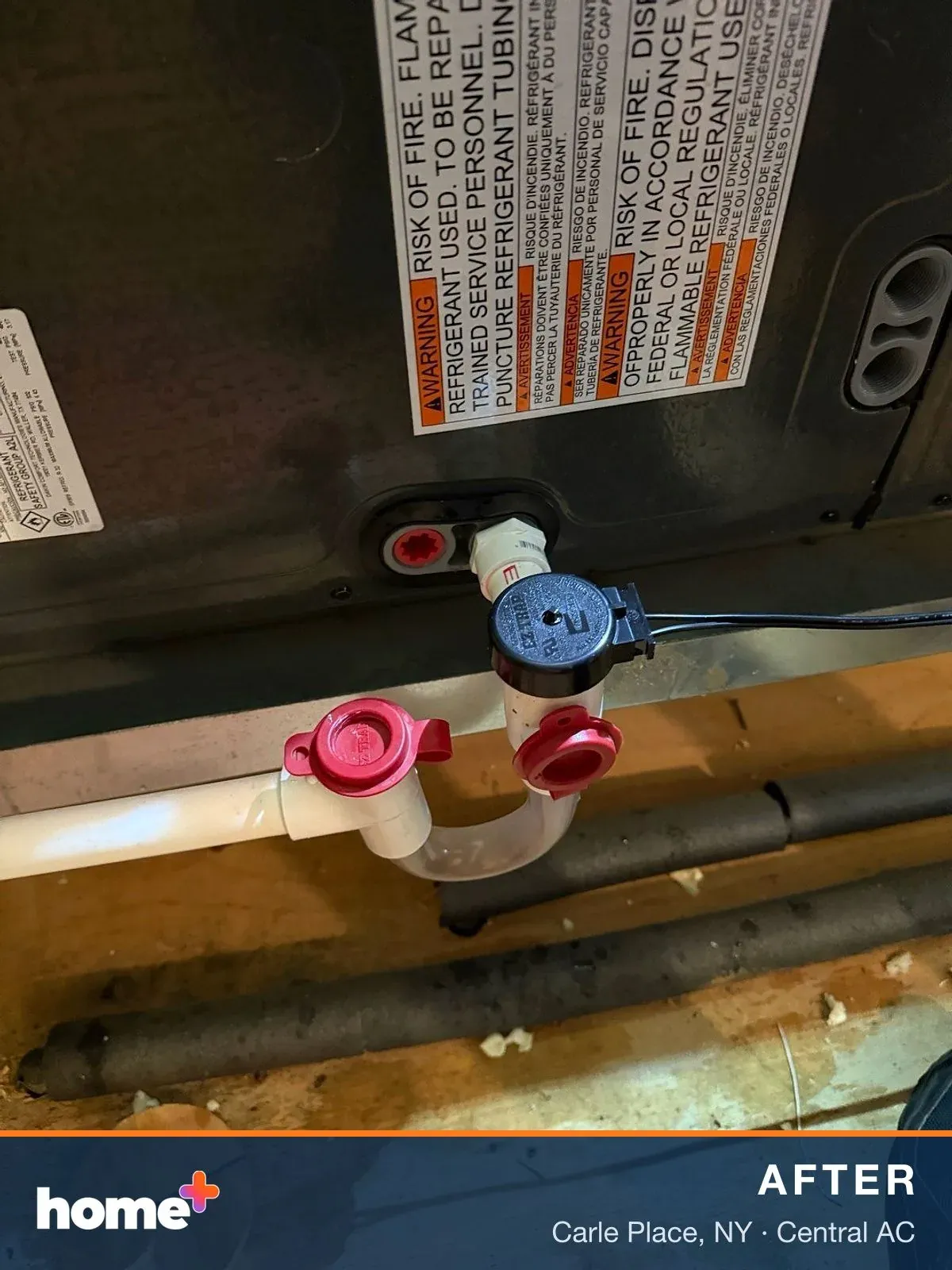

- Close-up of the new float safety switch on the trap, wired to shut the system off if water backs up.
Photos are lightly enhanced for clarity. The work shown is as installed or serviced.
The problem
The homeowner called because the upstairs system hadn't been working right for a couple of days. There were no error codes, no unusual noises and no visible leaks. On site, we also looked at how the cooling equipment drains. The home has two central air systems, and both air handlers sit in a spray-foam-insulated attic, so their condensate drains run above the home's finished ceilings. One of the two air handlers had no overflow protection on its condensate trap.
Our solution
We opened the condensate traps on both attic air handlers and ran a trap brush through each one. On the air handler that had no overflow protection, we installed a condensate overflow float safety switch on the trap and wired it in. The switch is designed to shut the system off if water backs up in the drain. The visit also included a cooling tune-up with coil cleaning using a no-rinse foam cleaner, algae tablets for the condensate pan and a new MERV 11 pleated filter.
The result
The condensate traps on both attic air handlers have been brushed out. One air handler now has a float safety switch that shuts the system off if its condensate drain backs up, helping protect the ceiling below. The system got a cooling tune-up and a fresh filter, and the homeowner joined our Home+ Comfort Membership, which includes a heating tune-up and a cooling tune-up every year.
Serviced
- Amana (Daikin) ALXS5BA2410AA outdoor AC condenser
- Amana (Daikin) ALXS5BA1810AA outdoor AC condenser
- Condensate overflow float safety switch (installed on one attic air handler's condensate trap)
Highlights
- Condensate traps on both attic air handlers opened and brushed out
- New condensate overflow float safety switch installed and wired on one air handler's trap
- The switch shuts the system off if the drain backs up, helping protect the finished ceilings below
- Cooling tune-up with foam coil cleaning, condensate pan algae tablets and a new MERV 11 filter
- Homeowner enrolled in the Home+ Comfort Membership for yearly heating and cooling tune-ups
Scope of work
- 01Service call for a second-floor comfort complaint
- 02Opened and cleaned the condensate traps on both attic air handlers with a trap brush
- 03Installed and wired a condensate overflow float safety switch on one air handler's condensate trap
- 04Cooling tune-up
- 05Coil cleaning with a no-rinse foam coil cleaner
- 06Added algae-treatment tablets to the condensate pan
- 07Installed a new MERV 11 pleated air filter (20x25x1)
- 08Enrolled the homeowner in the Home+ Comfort Membership (two tune-ups a year, heating and cooling)
More photos from the job
-

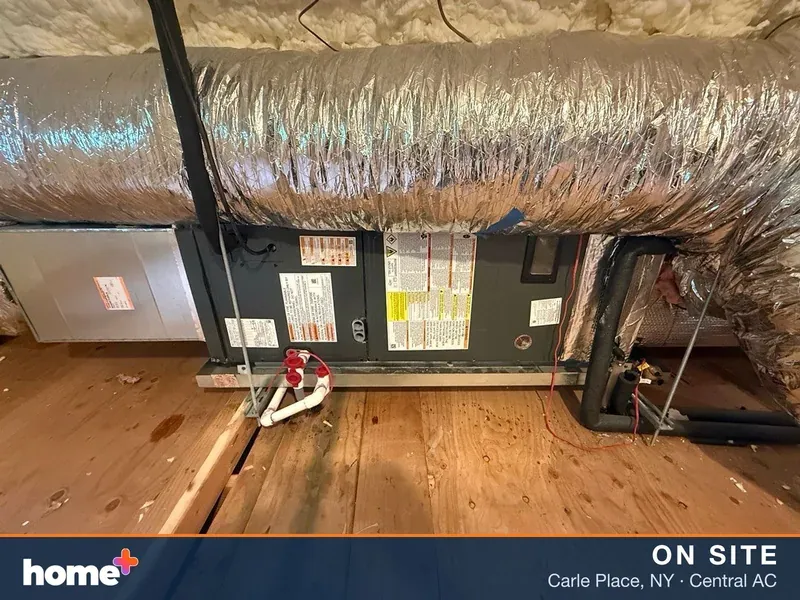

One of the home's two attic air handlers, sitting on a plywood deck under insulated flex duct. -

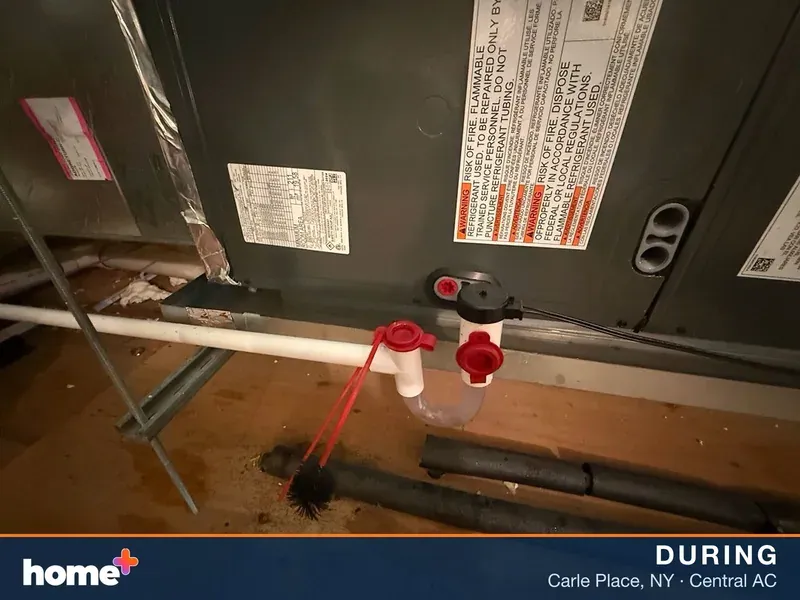

Brushing out the condensate trap; the new float safety switch is already mounted just above it. -
The attic air handler during the service, with the new float safety switch on its condensate trap at lower left. -
Same treatment on the second air handler: a trap brush run through its condensate trap. -

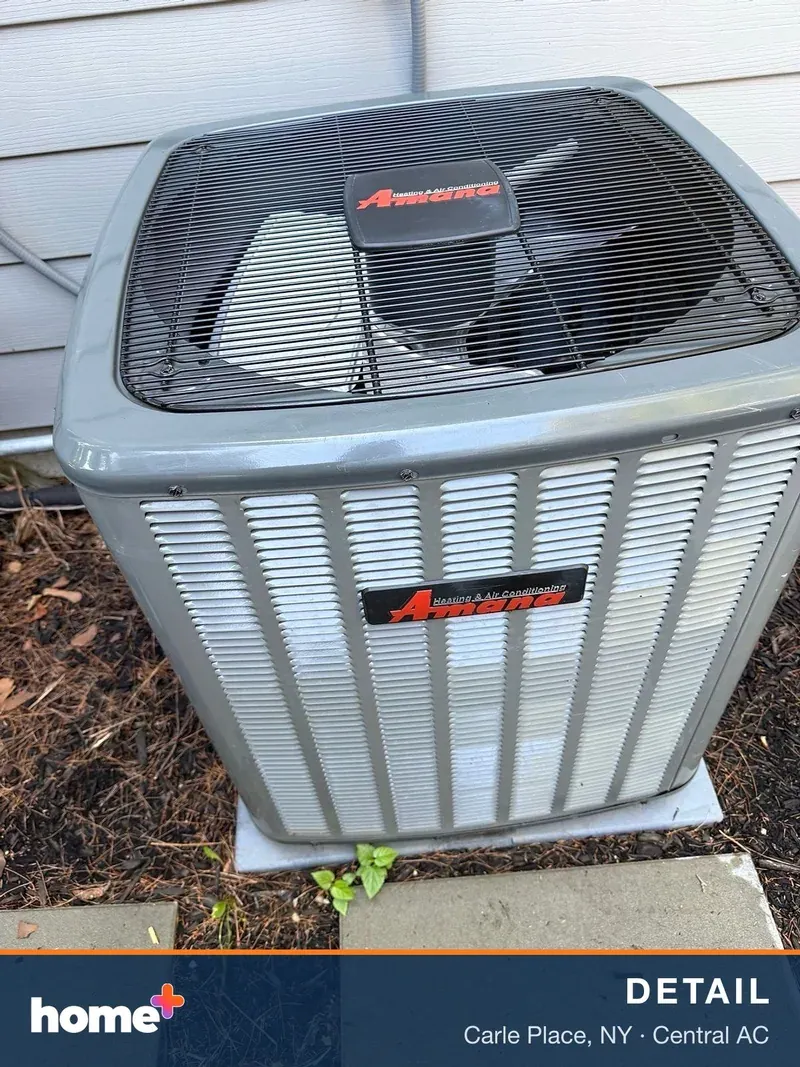

Outside: one of the home's two Amana condensers.
